Fresh concrete can look perfect one day and develop an ugly crack the next.
That is why contractors use saw cuts to give concrete a planned place to crack as it shrinks.
But one question matters before you start cutting: how deep should concrete saw cuts be?
For most conventional control joints, the common rule is to cut at least one-quarter of the concrete slab thickness.
So, if you have a 4-inch slab, the cut would usually be about 1 inch deep. An 8-inch slab would need about a 2-inch cut.
The exact depth can change based on the slab design, concrete mix, joint spacing, weather, and cutting method.

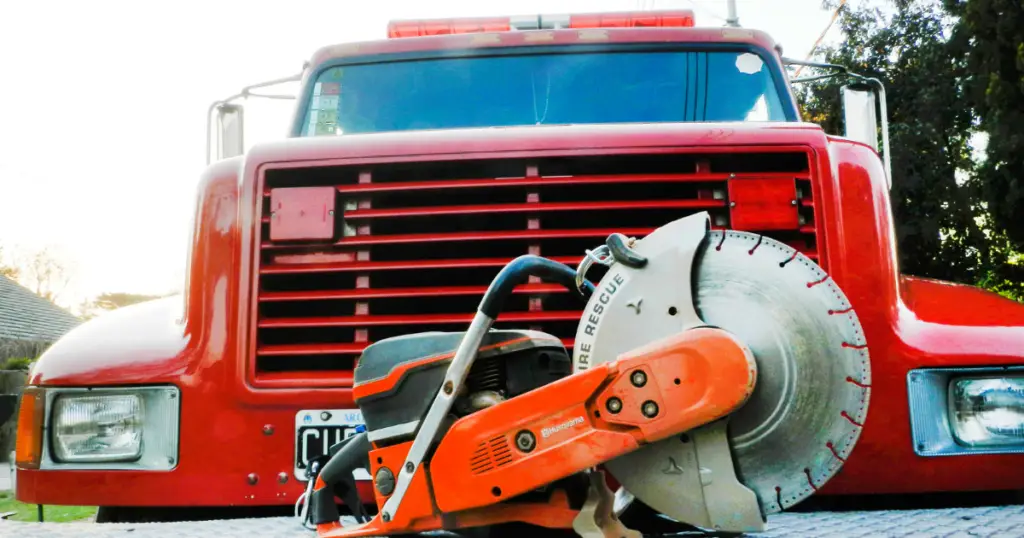

The concrete saw you use also matters because blade size and saw type affect how the work is done.
Getting the depth right is only part of the job. Timing matters just as much.
Cut too early and you may damage the concrete. Cut too late and random cracks may already have formed.
The Standard Rule for Concrete Saw Cut Depth
For a typical concrete slab, a conventional saw-cut control joint is generally made to one-quarter of the slab thickness.
Here are a few quick examples:
| Slab Thickness | Typical Saw Cut Depth |
| 4 inches | 1 inch |
| 5 inches | 1.25 inches |
| 6 inches | 1.5 inches |
| 8 inches | 2 inches |
| 10 inches | 2.5 inches |
| 12 inches | 3 inches |
The American Concrete Institute (ACI) notes that conventional saw cuts are generally made to one-fourth of slab depth.
This is a widely used field standard because it reliably creates a weakened plane where shrinkage cracks can form in a controlled way.
However, this is not a universal rule. Engineering drawings, structural requirements, or mix designs may override it.
Reinforced slabs, post-tensioned slabs, or heavily loaded industrial floors may require different joint strategies.
Why Does Concrete Need Saw Cuts?
Concrete shrinks as it cures. As moisture leaves the slab and hydration continues, internal volume changes create tensile stress.
Concrete handles compression well but performs poorly in tension. When tensile stress builds without relief, the slab cracks.
Saw cuts solve this by creating a planned weak point. Instead of allowing random cracking, the slab is encouraged to crack along a straight, controlled line beneath the cut.
A simple way to understand this is to think of scoring glass or cardboard.
Without a score line, breakage is unpredictable. With a score line, the break follows a controlled path.
Control joints are not decorative. They are functional stress relievers that protect slab appearance and structural performance.
How Deep Should Concrete Saw Cuts Be for a 4-Inch Slab?
For a standard 4-inch slab, a conventional saw cut is commonly 1 inch deep.
This is one of the most common residential applications, especially for:
- Driveways
- Sidewalks
- Patios
- Garage floors
The calculation is straightforward:
- 4 inches × 0.25 = 1 inch
But field conditions matter. Slab thickness is not always perfectly uniform.
Subgrade variations, finishing practices, and placement inconsistencies can all affect actual depth.
That is why experienced contractors often verify slab thickness before committing to a full cutting pass.
How Deep Should Concrete Saw Cuts Be for a 6-Inch Slab?
For a 6-inch slab, the standard quarter-depth rule gives a cut depth of 1.5 inches.
- 6 inches × 0.25 = 1.5 inches
This thickness is common in heavier residential or light commercial work such as:
- Driveways with heavier vehicle loads
- Warehouse floors
- Commercial sidewalks
- Structural slabs on grade
At this thickness, joint spacing becomes just as important as depth. If joints are spaced too far apart, even correct cutting depth will not prevent random cracking between joints.
What Happens If You Cut Too Shallow?
Shallow cuts are one of the most common field mistakes. If the saw cut does not reach sufficient depth, the slab may ignore the joint entirely.
Instead of cracking under the cut, the concrete may crack:
- Beside the joint
- Diagonally across panels
- At weak corners or re-entrant angles
This defeats the purpose of the control joint. The slab ends up with uncontrolled cracking patterns that are harder to repair and visually inconsistent.
A shallow cut is essentially a suggestion to the concrete, not a directive. If the weakened plane is not deep enough, the slab will choose its own path.
What Happens If You Cut Too Deep?
Overcutting is less common but still problematic. Excessive depth can:
- Reduce slab structural capacity
- Expose or damage reinforcement
- Interfere with embedded utilities or post-tension cables
- Create unnecessary stress concentration below the slab surface
In reinforced or engineered slabs, cutting too deep can compromise design intent.
This is why saw depth should always align with project specifications, not just general rules.
When Should You Saw Cut Concrete?
Depth is meaningless without correct timing.
Cutting too early can cause raveling, where the blade tears the surface instead of cleanly slicing it.
Cutting too late allows shrinkage cracks to form before joints are installed.
ACI guidance generally places conventional saw cutting in a window of about 4 to 12 hours after placement, depending on conditions.
Key factors that affect timing:
- Hot weather: Faster hydration and shrinkage require earlier cutting
- Cool weather: Slower set times delay cutting
- Wind exposure: Accelerates surface drying and cracking risk
- Large pours: Require faster planning and sequencing
The goal is simple: cut when the concrete is hard enough to resist surface damage but still early enough to control cracking.
Conventional Sawing vs. Early-Entry Sawing
Not all saw cutting systems behave the same.
Conventional sawing
- Performed after initial set
- Uses deeper cuts (typically 1/4 slab depth)
- Requires stronger concrete before cutting
Early-entry sawing
- Performed sooner after placement
- Uses specialized saws with shallow cutting depth
- Typically cuts around 1 to 1.5 inches depending on system
Early-entry systems reduce the risk of random cracking by allowing earlier joint placement, but they do not replace proper joint layout or spacing.
Does Saw Cut Depth Change for Different Joint Types?
Yes. Not all joints are control joints, and not all require the same depth.
Control joints
These are the most common saw-cut joints. They manage shrinkage cracking and typically follow the one-quarter-depth rule.
Construction joints
These occur where two concrete placements meet. They are structural in nature and may include dowels or reinforcement. Saw cutting is not always involved.
Isolation joints
These separate slabs from fixed structures like walls, columns, or footings. They are designed to allow independent movement and are not governed by saw-cut depth rules.
Understanding joint type is essential before setting blade depth.
Silica Dust and Safety Requirements
Cutting concrete produces respirable crystalline silica, a hazardous dust that can cause serious lung disease with prolonged exposure.
OSHA regulations require controls for many concrete cutting operations. Common requirements include:
- Wet cutting with continuous water delivery
- Approved dust collection systems
- Proper respiratory protection when required
- No dry sweeping of silica dust when safer methods exist
Safe cutting practices include:
- Keeping water flow consistent at the blade
- Using saws designed for dust control
- Wearing PPE such as respirators and eye protection
- Following manufacturer and site safety guidelines
Safety is not optional. It is part of proper concrete cutting practice.
A Practical Rule of Thumb
For conventional control joints, a simple working formula is:
Slab thickness × 0.25 = saw cut depth
Example:
- 8 inches × 0.25 = 2 inches
This is a reliable starting point for planning, but it should always be adjusted based on:
- Structural drawings
- Reinforcement location
- Joint spacing design
- Saw type and method
- Field conditions
Conclusion
So, how deep should concrete saw cuts be? In most standard applications, the answer is simple: about one-quarter of the slab thickness.
A 4-inch slab is typically cut 1 inch deep. A 6-inch slab is about 1.5 inches. An 8-inch slab is about 2 inches.
But depth alone does not guarantee success. Proper joint layout, correct timing, appropriate saw method, and safe cutting practices all matter just as much.
When these factors work together, concrete cracks where it is supposed to, and stays intact where it is not.
